Electric Meter Box Roll Forming Machine

본문 바로가기


Home > Product > Electric Meter Box Roll Forming Machine
Selling
Electric Meter Box Roll Forming Machine
Posting date : Oct 23, 2019
Membership
Free Member Scince Oct 10, 2018
FOB Price
68000
Min. Order Quantity
1SET
Supply Abillity
20SET
Port
Shenzhen
Payment Terms
By TT
Package
Container
Keyword :
Category
Contact
Rebaca
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Superda
Model Number
YX-150
HS-CODE
8455-30
Package & Delivery Lead Time
Package
Container
Delivery Lead Time
60days
Specifications
Type of Certification
CE
Reference no.
160711

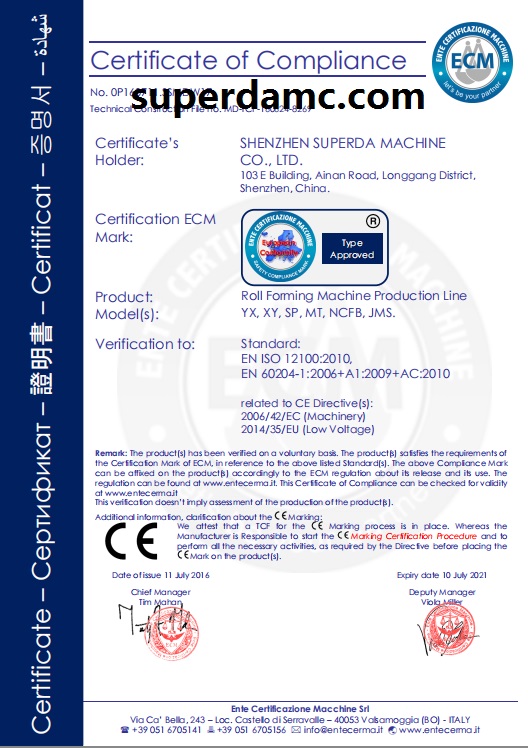

Name.
CE REPORT
Issued By
BO ITALY
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Detailed Description

New design galvanized steel electric meter box production solution & meter box roll forming machine production line.

Equipment for producting galvanized steel /stainless steel meter box



Electric meter box production line process

(A) Uncoiler →Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack

Roll Forming machine list

Uncoiler, Straightener

1,Type Manual Expansion

2,Parameter

1) Passive   discharge

2) Coil weight:<   2T

3) Coil inner D.:φ450mm-φ530mm

4) Max. Width.400mm

5) Thickness .0.4-1.6mm

6) Straightener roller :9 pcs

8) Power.1.5kw

Servo Feeder

3.1 Max. feeding width 400mm3.2  Feeding thickess 0.4-1.6mm

3. 3  Motor , 1.3KW(Yaskawa)

Hydraulic hole punching system

3.1 Function:Hydraulic punch breach  (Mould 1 set)3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.3.3 Hydraulic system working pressure:16MPa3.4 Hydraulic station:18.5KW( Hydraulic punch hole/shear use same station)

A. Hydraulic punch for the panel gap.

B. Hydraulic punch for the knock down hole

C. Hydraulic punch for the ventilating hole.

Meter Box Roll Forming Machine Roller System  (Panel width adjustable)

5.1  Forming Roller:16 stations,and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 6-12 m/min。

5.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃. 5.5  Motor power:7.5KW。    5.6  Main Roller :dia.75mm,45 #。5.7  Equipment base: 45 # H type using welded steel plate.5.8  Transmission: chain drive.5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Double rows roller station
