Superda Fire Hose Box Roll Forming Machine
Posting date : Oct 23, 2019
Membership
Free Member Scince Oct 10, 2018
FOB Price
68000
Min. Order Quantity
1SET
Supply Abillity
20SET
Port
Shenzhen
Payment Terms
By TT
Package
Container
Keyword :
Category
Contact
Rebaca
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Superda
Model Number
YX-158
HS-CODE
8455-30
Package & Delivery Lead Time
Package
Container
Delivery Lead Time
60days

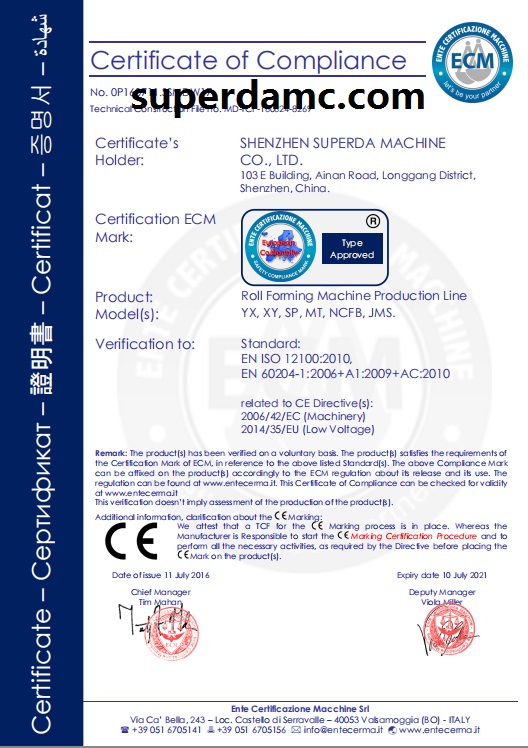

Specifications
Type of Certification
CE
Reference no.
160711
Name.
CE REPORT
Start Date (validity period)
2016-10-05
End Date (validity period)
0000-00-00

Detailed Description

New design galvanized steel fire box production solution & fore hose box, fire fighting hose box roll forming machine production line.

Equipment for producting galvanized steel /stainless steel fire hose box, fire fighting box, emergency plans box.

Fire box production line process

Uncoiler →Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack

Fire hose box roll forming machine roller system parameter  (Panel width adjustable)

 Forming Roller:16 stations,and add Rub-roll, To make sure the surface profile no scratches.

 Side Panel:T.18mm ,A3 steel   Heavy duty 。

Rolling speeding: 6-12 m/min。

 Roller material:GCr15,overall quenching, hardness HRC56-62 ℃. 5.5  Motor power:7.5KW。     Main Roller :Dia.75mm,45 #。5.7  Equipment base: 45 # H type using welded steel plate.5.8

 Transmission: chain drive.5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
