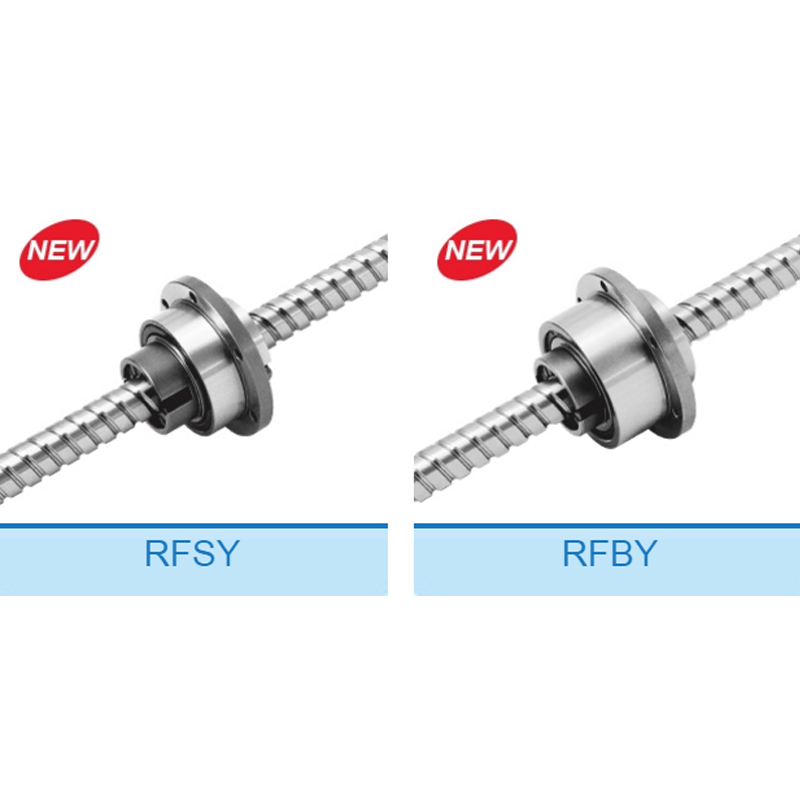

TBI Precision Rotary Ball Screw RFSY,RFBY
Taiwan [TW] Features of Precision Rotary Ball Screw
TBI motion rotatry ball screw line is designed to enable the applcation to move linearly and rotationally in one assembly, with symmetrical orientation design between the outer and inner ball screw or spline nut. Both rotary and spiral movement can be achieved simultaneously.
TBI motion rotary line Is the most ideal key component in scara robots, industrial robots, pick & place, laser engraving, transporting and many other multi-directional application.
|
Features
Zero clearance／High rigidity
TBI motion rotary line featured 40° angular (Back to back) contact angle within in the bearing. It enables self-aligning with minor mounting error and bears higher axial load to achieve better accuracy. Custom preload can be applied to reduce clearance and increase high rigidity.
|
 |
High speed／Smooth running performance
The rotary line uses TBI motion super lead screw to maintain high speed with smooth- ness in performance.
Noise reduction
The precision ground screw thread and spline groove make sure the ball bearing travel fluently during operations which reduce the skidding, friction and noise level and thus increase the service performance and life.
Plug and run／Compactness
TBI motion rotary line features a one-piece compact and easy mounting design.
Spline alternative
Ball spline offers customized end journal according to print. Hollow spline is availible on request for special operation environment in rentilation, piping on weight reduction.
Application
SCARA,Industrial robot,laser milling,Pick & go application etc.
