TBI Ball Screw Ground with end machining Series XSV
Posting date : Apr 14, 2016
Membership
Free Member Scince Mar 29, 2016
FOB Price
Inquiry
Min. Order Quantity
contact us
Supply Abillity
contact us
Port
contact us
Payment Terms
contact us
Package
contact us
Keyword :
Category
Contact
Bruce Li
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
Taiwan [TW]
Brand Name
TBI MOTION
Model Number
XSV
HS-CODE
8483-40
Package & Delivery Lead Time
Package
contact us
Detailed Description

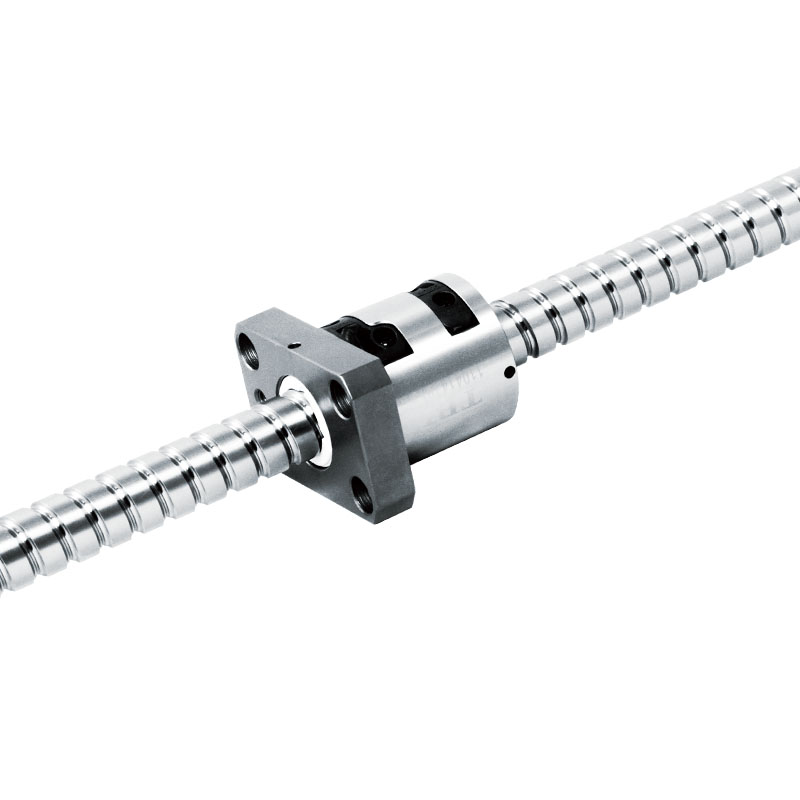

TBI MOTION Ball Screw



High Reliability

TBI MOTION has very stringent quality control standards covering every production process. With proper lubrication and use,trouble-free operation for an extended period of time is possible.



Smooth Operation

The high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion.



High Rigidity and Preload

When axial play is minimized in conventional screw-nut assemblies, the actuating torque becomes excessive and the operation is not smooth. The axial play in TBI MOTION precision ball screws may be reduced to zero by preloading and a light smooth operation is still possible. herefore, both low torque and high rigidity can be obtained simultaneously.TBI MOTION ball screws have gothic arch groove profiles (Fig. 1.2) which allow these conditions to be achieved.



Circulation Method

Ball return tube method.(V、E、S、Y type);Ball defelector method.(I、U、M、K type)



High Durability

Rigidly selected materials, intensive heat treating and processing techniques, backed by years of experience,have resulted in the most durable ball screws manufactured.

Groove Shape of TBI MOTION Precision Ball Screw

Material and Heat Treatment
ITEM
MATERIAL
HARDNESS
SCREW
SCM450
S55C
HRC58°~62°
NUT
SCM415H
HRC58°~62°
STELL
BALL
SUJ2
HRC60° UP


Heat Treatment


TBI Ball Screw Ground with end machining Series

Feature
1.Mount and go industrial application.
2.Short lead time.

Application
Automation machinery.
