6-lead ECG recorders / Portable six lead ecg MSLEC20 for sale
Posting date : Nov 30, 2015
Membership
Free Member Scince Nov 25, 2015
FOB Price
640
Min. Order Quantity
1 Set Set/Sets
Supply Abillity
1500 SETS PER MONTH
Port
HuangPu Port
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Package
Standard export package
Keyword :
Category
Contact
renee waldorf
Selling Leads Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
MSLEC20
HS-CODE
2909-60
Package & Delivery Lead Time
Package
Standard export package
Delivery Lead Time
within 7-10 workdays after receipt of payment
Detailed Description

6-lead ECG recorders / Portable six lead ecg MSLEC20 for sale

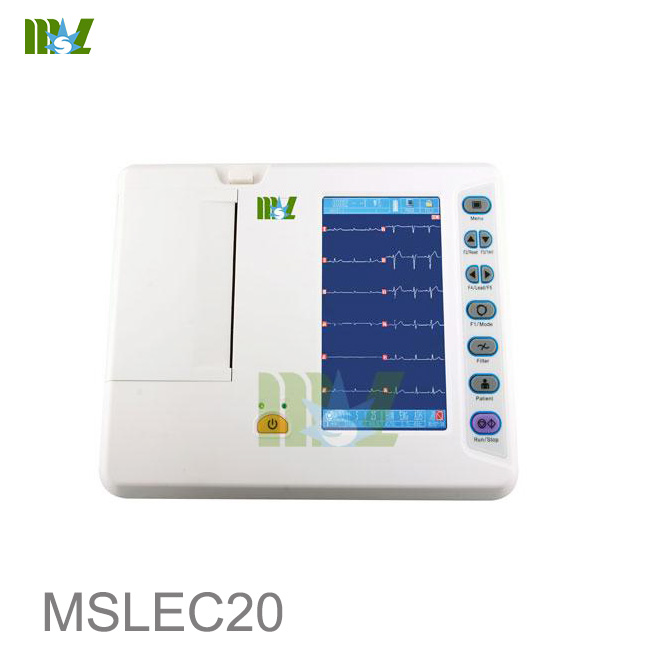

6-lead ECG recorders MSLEC20



6-lead ECG recorders MSLEC20 Features:

Portable delicate design,big color touch LCD,very easy to operate

Accurate pulse pace identification and excellent auto-interpretation function
High accuracy digital filter,auto baseline adjustment
12 leads synchronously acquisition and display;Record mode:3ch,3ch+,3ch+++,6ch
Working modes:Manual / Auto / Analysis / Storage
800×480 graphic 7 inch color touch LCD screen
250 cases storage and replay(SD card storage is optional)
Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.
112mm*20m high resolution thermal printing
Rs232 and USB interface ( USB disk storage,laser printer printing ,PC ECG software are optional )
Language:English,Chinese,French,Italian,Spanish,Russian
300mm*230mm*75mm,2.8kgs

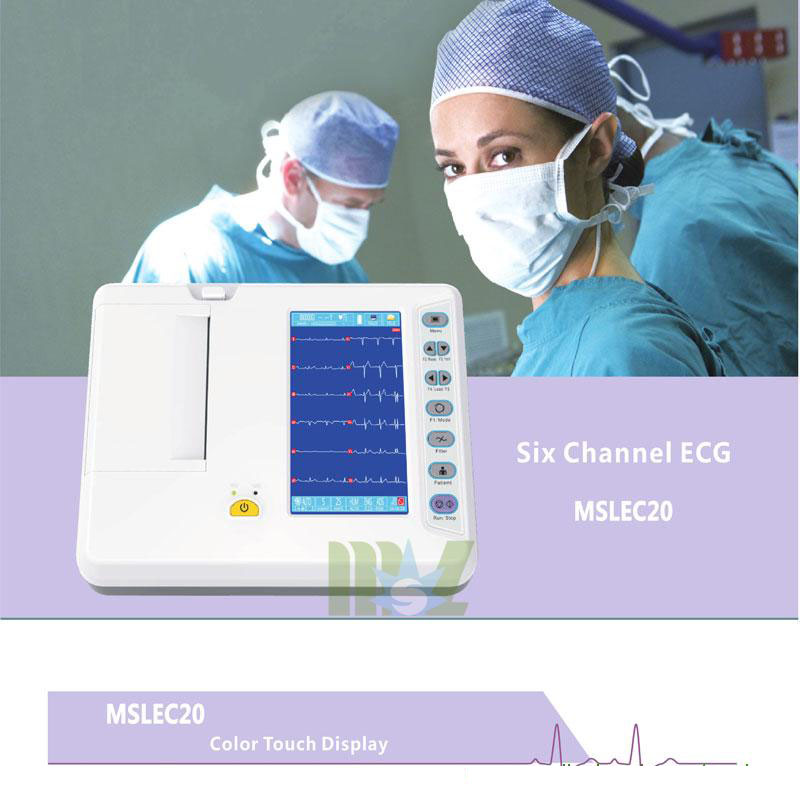

Portable six lead ecg MSLEC20

6-lead ECG recorders / Portable six lead ecg MSLEC20 for sale
YOUTUBE video link:

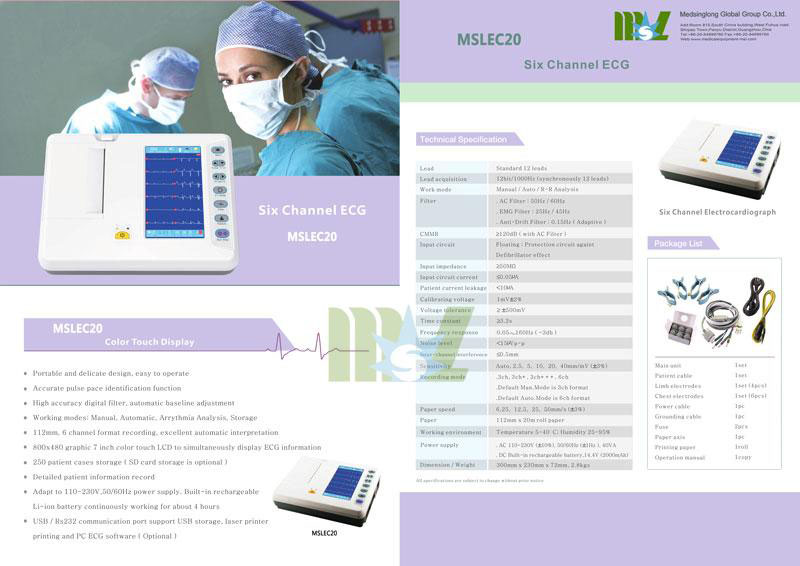

Portable six lead ecg MSLEC20 for sale

Portable six lead ecg MSLEC20 for sale Technical Specification:

Lead Standard 12 leads Time constant ≥3.2s
lead acquisition 12bit/1000Hz (synchronously 12 leads) Frequency response 0.05~160Hz(-3db)
Work mode Man / Auto/Analysis/Storage Noise level <15μVp-p
Filter AC Filter : 50Hz / 60Hz Inter-channel Interference ≤0.5mm
EMG Filter : 25Hz / 45Hz
Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR ≥120dB (with AC FILTER) Sensitivity 2.5,5,10,20, 40, Auto  (mm/mV)
Input circuit Floating; Protection circuit against Recording mode 3ch、3ch+、3ch+++、6ch
Defibrillator effect Default Man. Mode is  3ch  format
  Default Auto. Mode is  6ch+ format
Input Impedance ≥50MΩ Paper speed 6.25、12.5、25、50mm/s(±3%)
Input circuit current ≤0.05μA Paper  112mm *20m Roll paper
Patient current leakage <10μA Communication RS232/ USB port  ( optional )
Calibrating voltage 1mV±2% Power Supply AC 110-230V(±10%),50/60Hz(±1Hz),40VA
DC Built-in rechargeable battery,14.4V(2000mAh)
Voltage tolerance ≥±500mV Dimension/Weight 300mm×230mm×75mm/2.8Kg

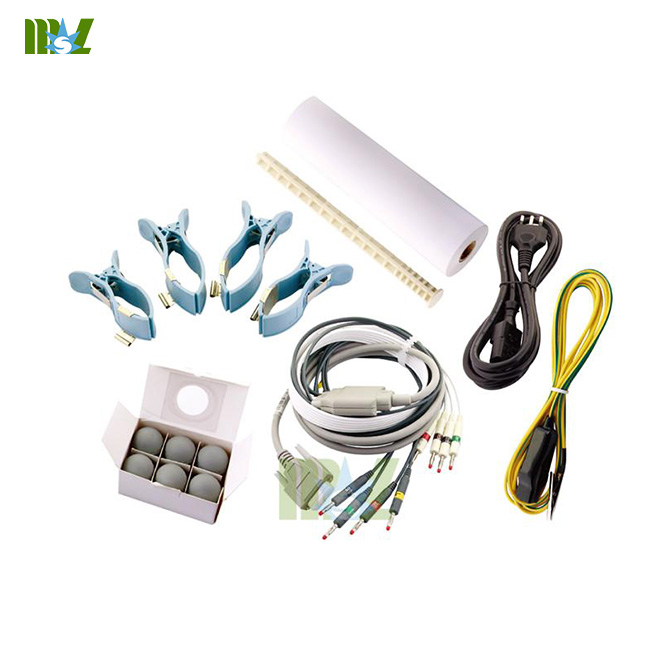

Portable single lead ecg MSLEC14 for sale

Portable six lead ecg MSLEC20 Package:

1 unit / small carton :  40cm*34cm*22cm,   net weight 2.8kgs,    gross weight 5kgs

4 units / big carton :   70cm*41cm*46cm,   net weight 12kgs,    gross weight 22kgs
12-lead ECG recorders package

MSL Portable twelve lead ecg package

Portable three Channel Electrocar​diograph / ECG machine MSLEC16 Package:

1 unit / small carton :  40cm*34cm*22cm,   net weight 2.8kgs,    gross weight 5kgs
Portable three Channel Electrocardiograph packaging
4 units / big carton :   70cm*41cm*46cm,   net weight 12kgs,    gross weight 22kgs
three Channel Electrocardiograph packaging
