Dolomite Powder Grinding Line/Caco3 Grinding Production Line

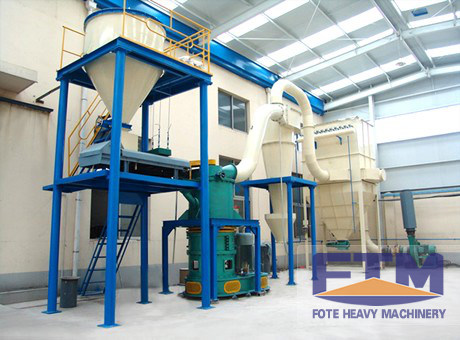

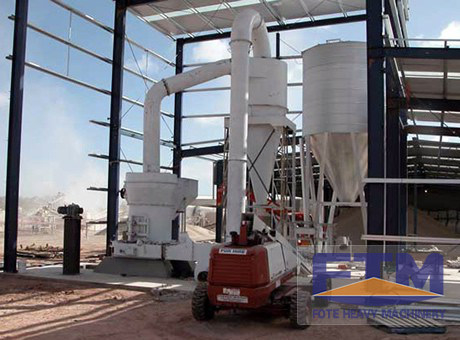

China [CN] The powder grinding plant or powder grinding production line is used to grind materials in the fields of construction, mining, metallurgy and chemical industry. The materials should be non-flammable and non-explosive. Examples of the materials are: quartz, feldspar, barite, fluorite, dolomite, garnet, carborundum, bauxite, zircon, marble, calcite, iron ore, rock phosphate, coal, ceram, slag and so on (400 kinds of materials). The materials should have the hardness less than 9.3 in Moh’s scale and humidity less than 6 percent. The granularity of the end products can be changed from 30 to 425 meshes.
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
As one of the pioneer manufacturers who have engaged in crushers and micro powder grinding mills for over 20 years, Henan Fote Heavy Machinery Co. Ltd. has strong capability in R&D, design and manufacturing. However, to better meet the challenges of modernization and the needs of international market competition, Fote Machinery still insists on the communication and cooperation with prestigious scientific research institutions from both home and abroad to strengthen its ability in machinery design, production, maintenance, testing and reform. Welcome to visit and purchase.
Contact Information
Email: info@sinoftm.com
Website: www.ftmmachine.com/products/production-lines/65.html
Address: High and New Industrial Zone, Kexue Revenue, High and New Technology Industrial Development Zone, Zhengzhou, China
Click enlarge Image
